APPLICATION INFORMATION PYTHON LIFT

breaking strength	+ + + + +	rotation resistant	yes
bending performance	+ +	use with swivel	yes
drum crush resistance	+ + + + +	rec. max fleet angle	2,0°
abrasion resistance	+ + + + +	multi layer suited	yes
lateral pressure stability	+ + + + +

ROPE CHARACTERISTICS

Lift features the ForcePac compaction on both the core and the outer lay. Boasting with very high breaking strength, it is the ideal rope for low frequency cranes such as life boat davits or high capacity crawler cranes. It comes with excellent pressure stability and abrasion resistance for use in multi layer systems with high line pulls.

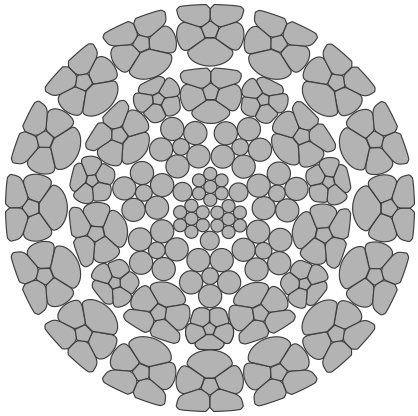

construction
39(W)xK6-KWSC

number of wires
241

load bearing outer wires
75

number of strands
39

manufacturing tolerance
+2% / +4%

available in
regular lay
