PYTHON CONSTRUCT 6

APPLICATION INFORMATION PYTHON CONSTRUCT 6

breaking strength + + + + rotation resistant no
bending performance + + + use with swivel no
drum crush resistance + + + + + rec. max fleet angle 4,0°
abrasion resistance + + + + + multi layer suited yes
lateral pressure stability + + + +


ROPE CHARACTERISTICS


Construct 6 is a swaged rope which is constructed from specialty made engineered and sized 6-strand wire rope. The basic wire rope is specially manufactured to the perfect specifications for swage compacting into the finished product. The degree of swage compacting is carefully selected to ensure the best compromise between crush- and fatigue resistance. Because of the swage compacting process, most of the rope‘s initial stretch (constructional stretch) has already been removed.
Construct 6 is a budget solution for applications which require a crush resistant rope to be used on multiple layer winding systems; for instance boom hoist line on lattice boom mobile- and tower cranes and as a general purpose winch rope for heavy duty applications.

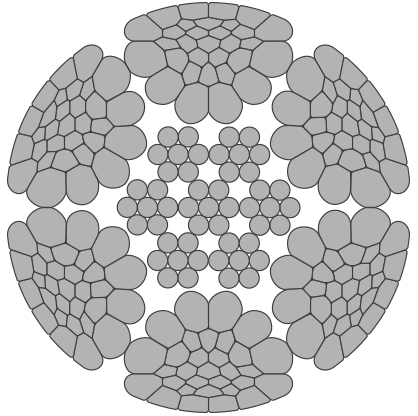

construction
7-25,4mm: 6xK31WS-IWRC
26-36mm: 6xK36WS-IWRC

  number of wires
235
265

  load bearing outer wires
186
216





number of strands
6+IWRC




manufacturing tolerance
+2% / +4%




available in
regular lay
