APPLICATION INFORMATION PYTHON SUPER 8 C

breaking strength + + + + rotation resistant no
bending performance + + + + use with swivel no
drum crush resistance + + + + rec. max fleet angle 4,0°
abrasion resistance + + + + multi layer suited yes
lateral pressure stability + + + +


ROPE CHARACTERISTICS


Super 8 C is the classic upgrade rope for most crane types for increased rope service life performance while maintaining the ability to operate with fleet angles up to 4°.
The 8-strand construction provides an excellent combination of flexibility, fatigue life, and abrasion resistance.
The rope is available in dual-tensile strength by which the outer strand wires are made from a higher fatigue resistant steel (on request). Suited as hoist line in systems using a left and right handed rope and in multi-fall applications with low lifting heights.

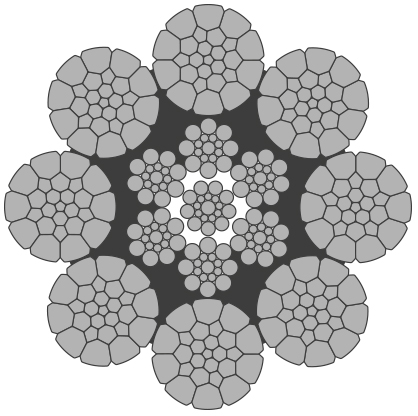

construction
10-40mm: 8xK26WS-EPIWRC
41-55mm: 8xK31WS-EPIWRC
56-65mm: 8xK36WS-EPIWRC
66+ mm: 8xK41WS-EPIWRC
  number of wires
257 / 329
369
409
449
  load bearing outer wires
208
248
288
328




number of strands
8+IWRC




manufacturing tolerance
+2% / +4%




available in
regular- / lang lay
