APPLICATION INFORMATION PYTHON SUPER 8 CD

breaking strength + + + + + rotation resistant no
bending performance + + + + use with swivel no
drum crush resistance + + + + rec. max fleet angle 3,0°
abrasion resistance + + + + multi layer suited yes
lateral pressure stability + + + +




ROPE CHARACTERISTICS


Boasting with breakload and fatigue life, Super 8 CD is suited as hoist and luffing rope in applications with extreme breakload requirements. Suited as hoist line in systems using a left and right handed rope and in multi-fall applications with low lifting heights.

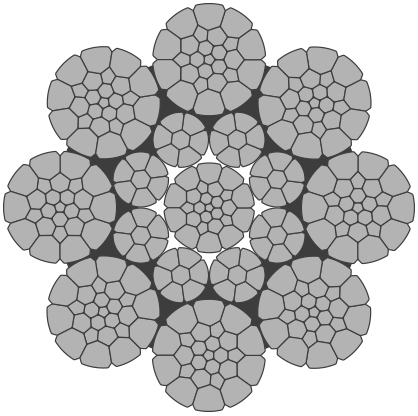

construction
10-40mm: 8xK26WS-EPPWRC(K)
41-55mm: 8xK31WS-EPPWRC(K)
56-65mm: 8xK36WS-EPPWRC(K)
66+ mm: 8xK41WS-EPPWRC(K)
  number of wires
290
335
444
505
  load bearing outer wires
208
248
288
328




number of strands
8+IWRC




manufacturing tolerance
+2% / +4%




available in
regular- / lang lay
