APPLICATION INFORMATION PYTHON SUPER 8 S
| breaking strength | + + + + | rotation resistant | no | |
| bending performance | + + + | use with swivel | no | |
| drum crush resistance | + + + + + | rec. max fleet angle | 4,0° | |
| abrasion resistance | + + + + + | multi layer suited | yes | |
| lateral pressure stability | + + + + |
 |
  |
ROPE CHARACTERISTICS
Super 8 S is a specialist in applications with severe drum crushing or in applications where material ingress causes a short rope service life (e.g. excavator draglines). The ForcePac compaction ensures a very closed and round rope surface, providing smooth and even spooling plus reduced wear and tear. Suited as hoist line in systems using a left and right handed rope and in multi-fall applications with low lifting heights.

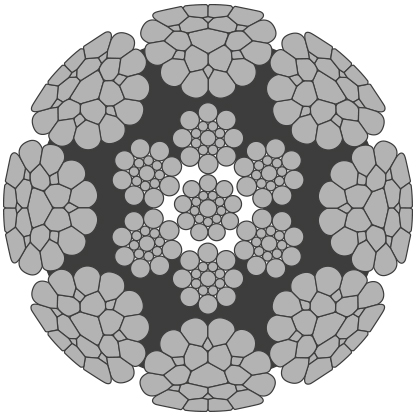

| construction 8xK25F-EPIWRC |
number of wires 249 / 321 |
load bearing outer wires 152 |
||
number of strands
|
manufacturing tolerance
|
available in
|
